MYHT-1-5 Portable Hydraulic Flow Meters With Peak Pressure 420 Bar For Testing

Shandong Highland Hydraulic Seiko Co., Ltd.
Contact Now

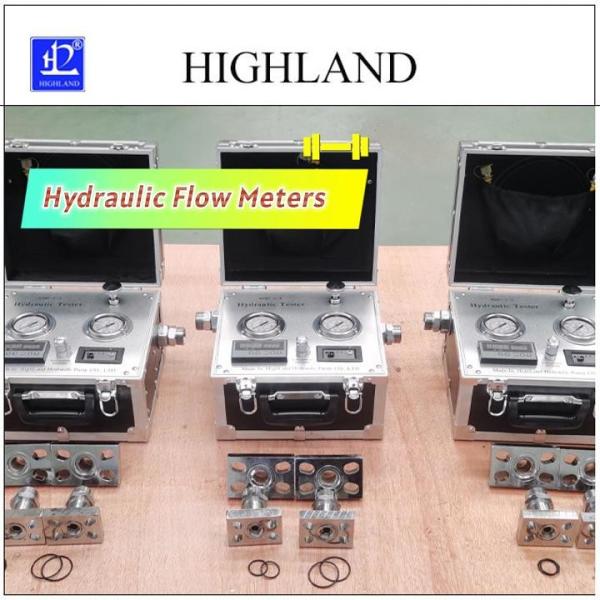

MYHT-1-5 Portable Hydraulic Flow Meters With Peak Pressure 420 Bar For Testing

  • 1
  • 2
  • 3

Brand Name : HIGHLAND

Model Number : MYHT-1-5

Certification : PATENT CERTIFICATE

Place of Origin : CHINA DEZHOU

MOQ : 1 set

Price : Negotiated price

Payment Terms : T/T

Supply Ability : 100 sets per month

Delivery Time : 10 working days

Packaging Details : Anti-corrosion plastic bag and plywood case

Product model : MYHT-1-5 Portable Hydraulic Flow Meters With Peak Pressure 420 Bar

Flow range : 0-500l/min

Pressure range : 0-42Mpa

Temperature : 0-150C

Weight : 8.8kg

Usage : Hydraulic system

Color : Silver color

Product name : Hydraulic Flow Test Gauge Kit Used For Excavators Measurement Of Flow

Contact Now

MYHT-1-5 Portable Hydraulic Flow Meters With Peak Pressure 420 Bar For Testing Hydraulic Pump Motor

Portable Hydraulic Flow Meters basic information:

The MYHT series portable hydraulic flow meters are a powerful diagnostic tool that can help you identify and resolve hydraulic system problems quickly and efficiently. Our hydraulic flow meters can measure the flow rate, pressure, and temperature of hydraulic fluid in various components of excavator machinery, such as pumps, motors, and valves under different operating conditions and loads. It can help you reduce downtime, improve productivity, and extend the service life of your hydraulic equipment.

MYHT-1-5 Portable Hydraulic Flow Meters features:

1. ACCURATE measurement of flow, pressure, peak pressure and temperature.

2. SAFE to use in both directions of flow. Internal oil by-pass protects multi meter and operate against over pressure.

3. Bi-DIRECTIONAL for unrestricted connection and simplified testing.

4. FAST checks on pumps, motors, valves, cylinders, hydrostatic transmissions.

5. EASY to operate controls. Connect Into the hydraulic system and simply“Switch on”.

6. PORTABLE AND LIGHTWEIGHT with the case for easier viewing and cleaning.

7. RECHARGEABLE POWER: lithium battery 12v.

MYHT-1-5 Portable Hydraulic Flow Meters With Peak Pressure 420 Bar For Testing

420 Bar Hydraulic Flow Meters technical specifications:

Model Flow(L/min) Precision Pressure(bar) Oil Temperature(°C) Dimensions(mm) Weight(Kg)
MYHT-1-2 200 ±1% 420 150 280*245*172 6.1
MYHT-1-4 400 ±1% 420 150 280*245*172 8.8
MYHT-1-5 500 ±1% 420 150 280*245*172 10.5
MYHT-1-7 800 ±1% 420 150 310*285*261 14

MYHT-1-5 Portable Hydraulic Flow Meters With Peak Pressure 420 Bar For Testing

MYHT-1-5 Portable Hydraulic Flow Meters​ main usage to measure of flow:

In the hydraulic loop system, the acquisition of breakpoints data and the measurement of flow rate, pressure and temperature of the system and components are able to be realized simultaneously. Through the data acquired MYHT Tester evaluates the performance of the system and components and judges the faults.

Note of Hydraulic flow meters:

1. Before starting the equipment, loading must be unscrewed (left screwing to the end). Otherwise, danger easy arises.

2. Near the loading valve is high-pressure oil inlet, the other is outlet. Loading will not be realized if the inlet and outlet are connected at wrong position.

3. Please shut off the power when the instrument not in use.

MYHT-1-5 Portable Hydraulic Flow Meters With Peak Pressure 420 Bar For Testing
